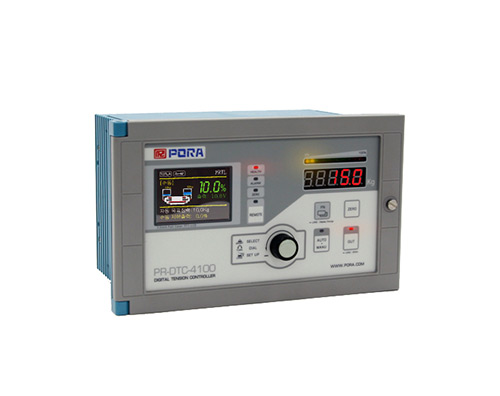

PR-DTC-4100是作为Dgital Tension Controller而读取称重传感器、捡拾、差動捡拾传感器来进行控制电源开关或电闸的模式。
● 3.2 inch Full Color TFT-LCD
● TG电压控制功能
● 对浪涌、干涉具有高耐性
● 多样细节设定
● 补偿功能
● 关于TG、触点、设定张力的输出控制功能、
| Category | Specifications | ||
| Display | 3.2 inch Full Color TFT-LCD | ||
| Analog | Input | TG input | DC 5~50V,AC5~50V |
| Analog input | 3mV/V(Load Cell),32mV/V(Pickup), Differential Pickup | ||
| Output | V_OUT | DC 10V load 1KΩ(min) | |
| I_OUT | 4~20mA load 470Ω(max) | ||
|
Powder Brake/ Clutch Power |
DC 24V 4.5A | ||
|
Contact point signal |
Alarm (Output) |
Excessive current | Open collector output +24Vdc/150mAdc |
| Tension fault | |||
| Sensor fault | |||
| ZERO | |||
| Operation speed | 4ms | ||
| Measurement range | -9999 ~ 99999 Kg | ||
| Communication | CAN,RS485 (※Option) | ||
| Power | AC100V~AC240V 50/60Hz (2.2A) | ||
| Protection structure | IP40 equivalent | ||
|
Operating temperature |
0~65℃ | ||
| Weight | 3 Kg | ||
