产品名称: 保罗PORA-DTC-3100P变位张力

发布日期: 2018-03-21

点击数: 1198

询价: 点击产品询价

二维码:

产品详情

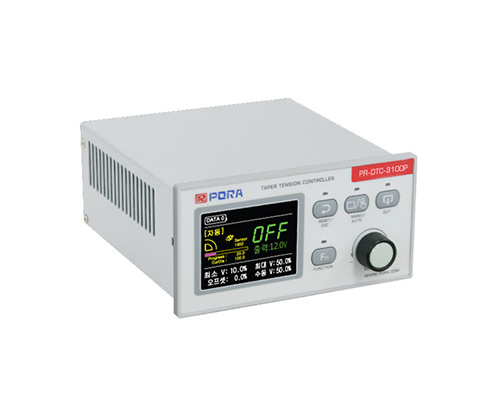

The DTC-3100P Tension Controller is of a thickness calculation and external sensor input detection type and is a semi-automatic tension control device of close-loop method by winding diameter calculation control.


SPECIFICATIONS
model PR-DTC-3100P

Control method Diameter calculation method / External input method

Remote terminal Reset, rewinding/unwinding conversion, pause, output on/off terminal, RUN/STOP

Compatible sensors
Use of proximity sensor (PR-12-4DN)
Sensor input voltage : 12 ~ 24V
Sensor output : DC 200mA (Max.)
Sensor detection distance : 4mm (standard distance)
/ Use of ultrasonic sensors (external input method sensor : Potentiometer)

Input voltage AC 100 ~ 240V


Output DC 0 ~ 24V

Weight 1.3Kg
